DIY WPC Decking Guide: Understanding Deck Framing Diagrams
A successful DIY deck project begins with careful planning, and a meticulous plan starts with a strong understanding of a deck framing diagram. This diagram is a visual plan that elaborates how to put everything together in your deck, covering every process and step from the footings to the railings.

With the growing popularity of wood plastic composite decking, homeowners are gradually and steadily recognizing the pros of creating their own outdoor areas that require minimal upkeep, while offering high durability at the same time.
So, whether you’re designing a traditional deck or a floating one, an understanding of the process, components, and assembly is important to successfully create a durable, safe, and aesthetically pleasing deck.
Understanding the Deck Framing Diagram: Key Components Explained

A deck diagram serves as the structural map or blueprint of your deck. It shows how various parts and elements work together to support the weight of the deck, ensure a stable ground, and resist shifting.
Though understanding the diagram in its entirety isn’t required, understanding each part of the deck is critical before you cut wood or lay individual planks and boards. Here are the 16 primary parts of a standard deck frame system:
1. Footings: These structures serve as the foundation of the deck. It transfers the load from the deck to the ground. Common footing types include concrete pier footings, helical piles (which are ideal for poor soil conditions), and precast concrete blocks (ideal for floating decks).
2. Support Posts: These are vertical columns that connect the footings to the beams of the deck to transfer structural loads. According to the International Residential Code, support posts must be at least 6×6 in nominal size if the deck exceeds 8 feet in height to ensure it meets standard structural integrity and load-bearing capacity.
3. Ledger Board: This is a horizontal board that anchors the deck to the house, providing one side of structural support.
4. Joists: These horizontal structures span from the ledger to the beams, which support the decking surface above.
5. Beams: These are load-bearing structures that run perpendicular to the joists to support the weight away from the house. There are two common types: drop beams, which are placed below joists, and flush beams that are leveled with the joists.
6. Blocking: These are short boards placed between joists to reduce bounce and prevent twisting.
7. Stair Stringers and Stair Header: Stringers support the steps, while the stair header connects the tops of the stringers.
8. Structural Hardware: Includes metal brackets, joist hangers, lag bolts, and anchors—all of these are essential for ensuring secure connections and structural integrity. If one component is missing, it may compromise the entire structure.
9. Flashing: Flashing is a waterproofing material, usually metal or vinyl, installed where the deck meets the house to protect against moisture and rainwater intrusion.
10. Decking: The surface boards and planks where you walk. While traditional wood is still common, wood plastic composite decking is steadily gaining worldwide recognition, thanks to its superior longevity and minimal upkeep, as it undergoes a complex manufacturing process.
11. Stair Treads & Risers, Fascia, Railing Posts, Rails, and Balustrades: These finishing and safety features enhance functionality and aesthetics. Though some of these aren’t regulated by code, most local building codes require you to add rails to your deck to ensure safety.
Note: Always follow your local building codes and only use approved materials and hardware to ensure your deck is safe, code-compliant, and built to last against the test of time.
Floating Deck Framing Diagram: A Step-by-Step Overview
A floating deck framing diagram outlines the structure of a floating deck—a deck that’s not attached to a house or a permanent freestanding structure. These decks are popular for patios, garden spaces, and yards where flexibility and quick installation are priorities.
It differs in structure compared to conventional decks in the sense that:
- It uses no ledger boards, and all weight is supported by the posts and footings.

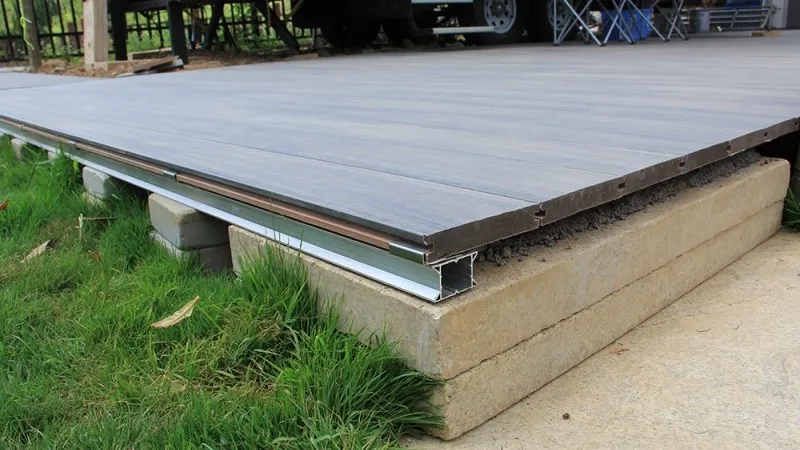

- Footings are often shallower and use ground anchors or precast concrete blocks.
- Joists are directly attached to the beams or rim boards with brackets and hangers.
Here’s a simplified description using the parts of a conventional deck:
- Footings: The footings of a floating deck are spaced based on joist spans and should be attached to compacted, reinforced soil or gravel.
- Posts: Floating decks typically have shorter posts; usually just enough to raise the deck off the ground for a few feet or so.
- Beams and Joists: Creates a grid; blocking adds lateral stability.
- Decking: Usually installed perpendicular or diagonal to the joists, but still depends on overall design and structural requirements.
As for foundations, soil type and your area’s climate patterns affect how deep and wide your footings should be. If your area has soft soil and rain is predominant, footings should be deeper and broader to dissipate the load of the deck to the ground effectively.
Freestanding or floating decks also need proper anchoring to prevent soil and foundation shifting.
Choosing the Right Decking Material: Why Wood Plastic Composite Decking Stands Out
When choosing between traditional wood and composite, wood plastic composite decking offers a clear pro for many DIYers. Here are several reasons why:
- Low Maintenance: No staining, sealing, or repainting required.
- Weather and Rot Resistance: Doesn’t warp, splinter, or attract termites.
- Aesthetic Variety: Available in natural wood tones, textured finishes, and modern colors.
- Eco-Friendly: Made from recycled plastics and reclaimed wood fibers.
- Durability and Warranty: WPC boards often come with 15–25-year warranties and hold up well under UV and moisture exposure.
WPC decking is also compatible with standard joist spacing and fastener systems, making it easy to install even for first-time builders.
Recommended WPC Decking Products for Your DIY Project
If you’re looking for premium WPC decking boards distributor options, Oakio stands out as a trusted brand. Apart from being a multi-year innovator and producer of premium WPC, Oakio’s WPC decking solutions deliver:
- Exceptional durability against weather systems (heavy rain, snow, extreme sun exposure), molds and mildew, cracking, and warping.
- Elegant and aesthetically pleasing textures and colors that mimic the warmth and appearance of natural wood.
- DIY-friendly installation systems, using standard fasteners and hidden clip systems for better aesthetics.
- Eco-friendly production systems, utilizing recycled materials and low-carbon footprint production standards.
So, whether you’re building a compact backyard retreat or a sprawling multi-level platform, Oakio’s WPC products provide a great balance of style, strength, and sustainability.
Conclusion
Understanding your deck framing diagram is the first step to building a safe, sturdy, and beautiful deck. From footings to finishing rail—every part and every step matters, especially when you’re working on floating decks that need independent support structures.
Inarguably, the second step is to choose the right material for the job: WPC. Oakio’s WPC decking solutions are perfect for every DIY deck project, whether you’re a pro or a first-timer!
Start your deck project with confidence today and explore our decking solutions catalog to find the perfect boards for your dream deck!
